Construction site vibration measurement Example3

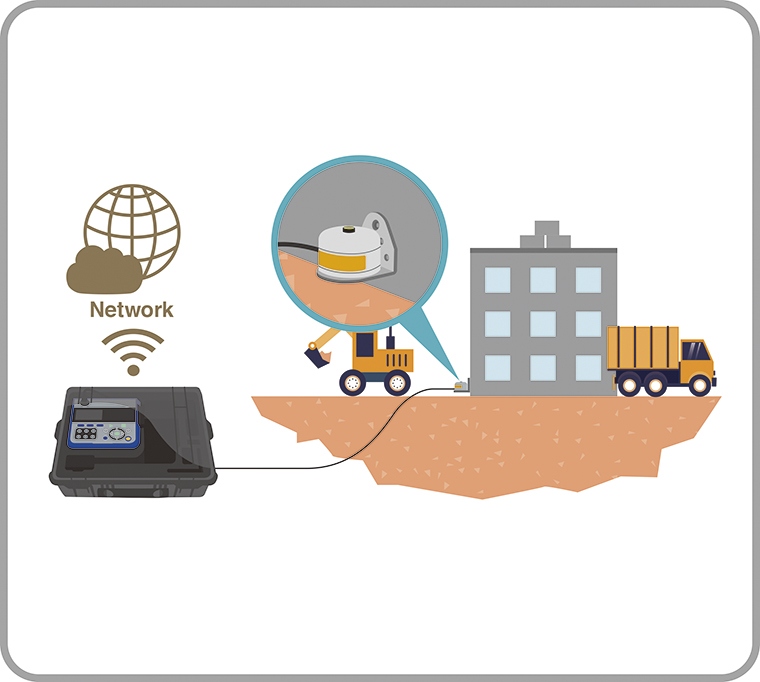

3. Long-Term Live-to-Web Monitoring
It is becoming standard practice for the vibration levels from major projects to be continuously
monitored with a “real-time” live-to-web system. Alerts can sent when vibration levels associated with significant annoyance or effects on buildings are being approached or exceeded. The “real-time” vibration levels can also be made available to the affected receptors to address concerns or demonstrate whether limits are being met or exceeded.
The two-way communications interface and reliability of the VM-56 make it ideally suited to integration into an online system. Using the RION VM-56 also ensures that the quality of the data is excellent.
Please contact us for more details regarding system configuration.
|
Supported Technical Standard / Law / Regulation |
● DIN 4150-2: 1999-06 |
|---|
Product List
|
Model |
Product Name |
Remarks |
|---|---|---|
| VM-56 |
Tri-axial Groundborne Vibration Meter |
|
| PV-83D (Supplied with VM-56. Cable length 1.5 m) |
Tri-axial accelerometer |
|
| VX-56WR |
Waveform Recording Program |
|
| EC-04series (max. 100 m) |
Extension cables |
|
| NC-98E |
AC adapter（100 V to 240 V） |
|
| VP-54D |
DIN plate |
|
| VP-54L |
L-bracket |
|
| MC-51SD1 |
SD card（512 MB） |
|
| MC-20SD2 |
SD card（2 GB） |
|
| MC-32SP3 |
SD card（32 GB） |
|
| AS-70GV |
Waveform Analysis Software for Groundborne Vibration |
|
| Please contact us for details |
Communications equipment |
|
