Perform floor impact sound pressure level measurement after completion of a building Example1


拡大を閉じる

Perform floor impact sound pressure level measurement after completion of a building Example1

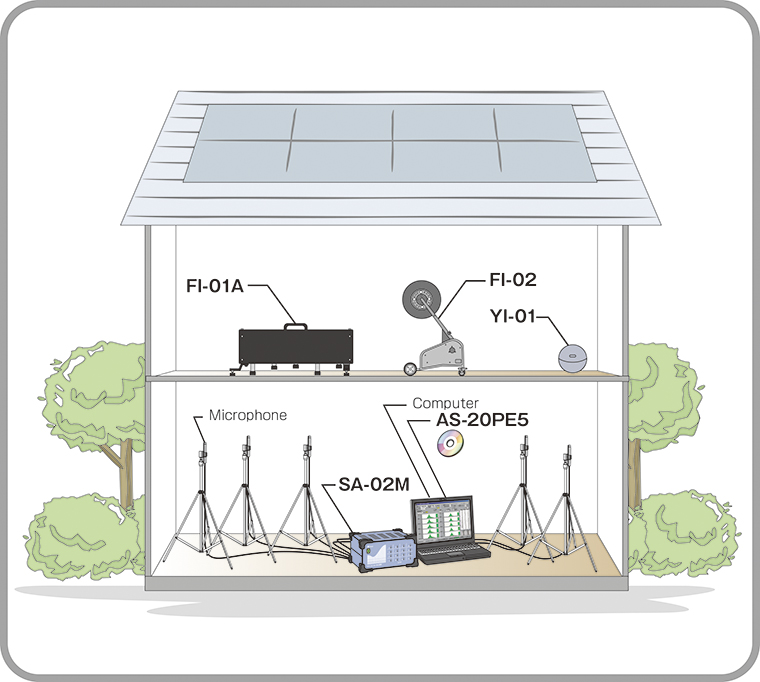

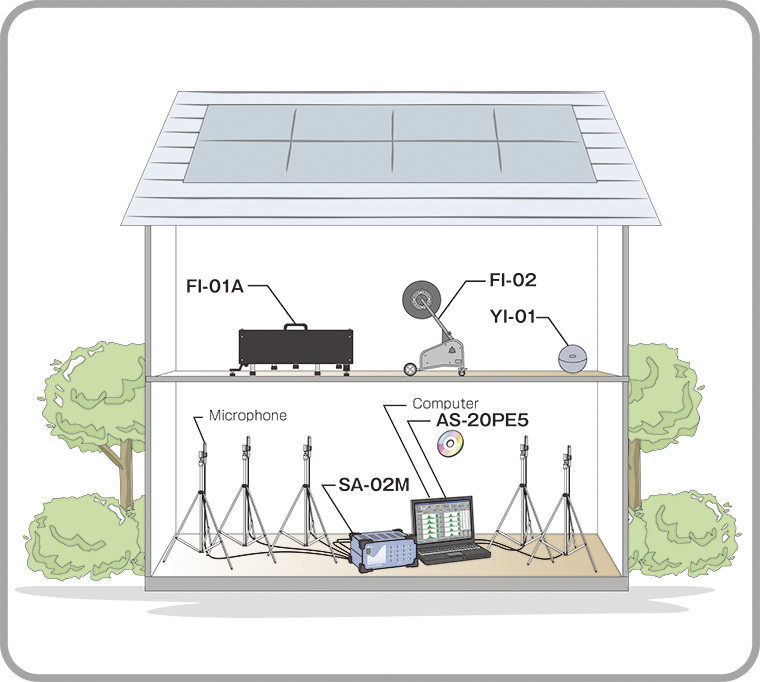

Perform floor impact sound pressure level measurement using a system configured around the multi-channel signal analyzer SA-02.
Use a Light Floor Impact Sound Generator as impact sound source. Install microphones under the floor and connect them to the SA-02M. The airborne and floor impact sound insulation measurement software AS-20PE5 running on a computer is used to control the SA-02M.
Use the AS-20PE5 to measure background noise beforehand. After starting measurement with the AS-20PE5, the system will wait for the impact sound. Repeatedly activating the impact sound source will cause measurement to be repeated automatically for the preset number of times. After completion, change the impact sound position and repeat the measurement under the same conditions, to obtain data for the various evaluation values.

Print

Product List

Model
Product Name
Remarks
SA-02M Multi-Channel Signal Analyzer

SA-02SG Signal Output Unit

EC-90 Series BNC-BNC Coaxial Cable

Microphone

FI-01A Light Floor Impact Sound Generator (Tapping Machine)

Computer

AS-20PE5

Airborne Noise / Floor Impact Noise Insulation Measurement

Amplifier for Speaker

Speaker
